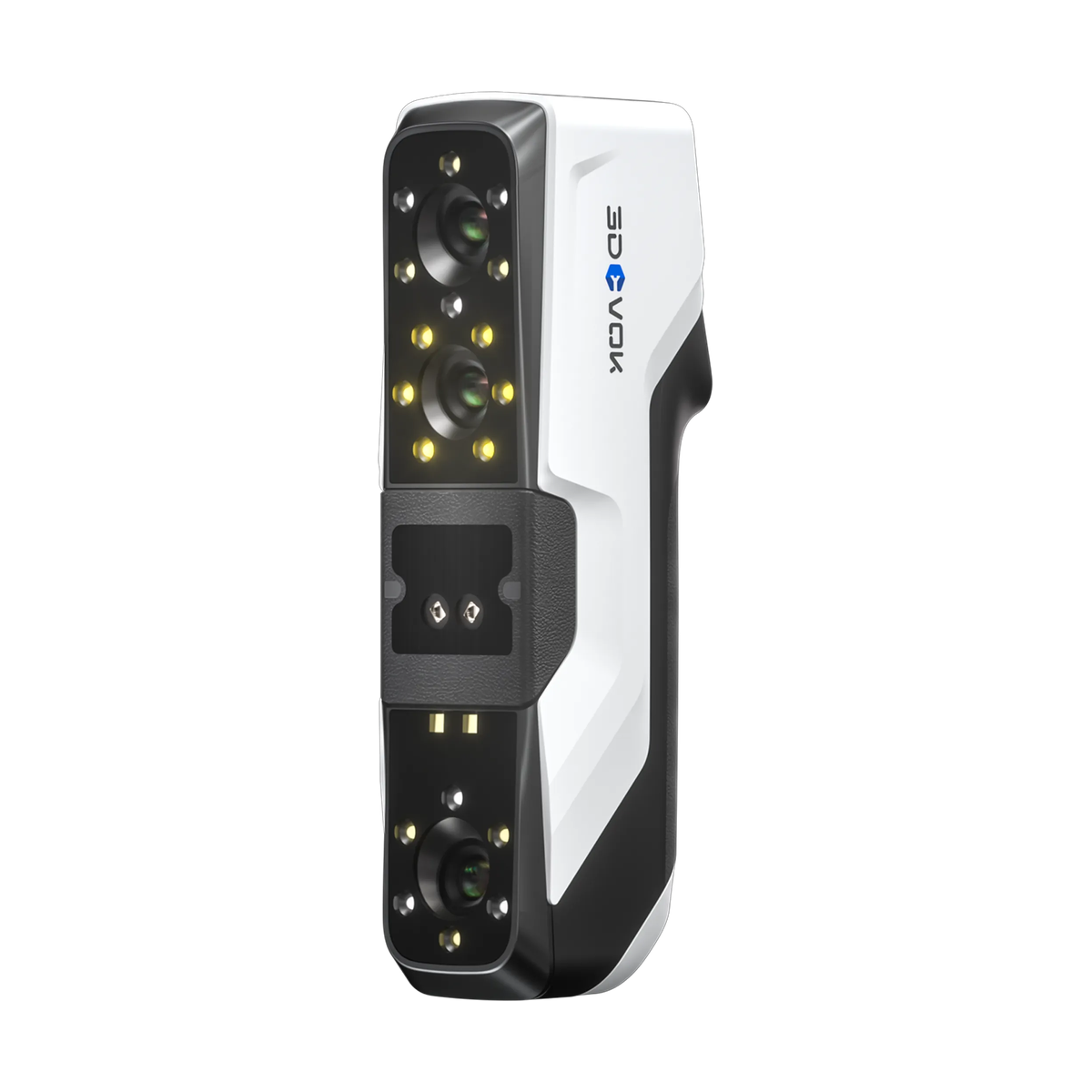

3DeVOK MQ Color 3D Scanner
Wireless, colour, invisible light
A colour 3D scanner with 0.08 mm accuracy that scans marker-free with invisible infrared light, captures 24-bit colour and can be used wirelessly.
- AccuracyUp to 0.08 mm
- ResolutionUp to 0.1 mm
- Scanning Speed4,500,000 points/second
- Colour24-bit colour + texture
2 Invisible Light Sources
- 122 Infrared Laser Lines (Parts from 5 cm)
- 2Infrared Speckle - 2 Fields of View (Portraits and Large Objects)
3DeVOK MQ is a wireless-capable colour handheld 3D scanner designed to make everyone a 3D creator. It combines a 22-line infrared laser with infrared speckle light offering two fields of view; both light sources are invisible, so portrait and body scans are comfortable.
It works with up to 0.08 mm accuracy, 0.1 mm resolution and up to 4.5 million points per second. It scans without markers, from objects as small as 5 cm up to large objects with a 1100 × 1000 mm field of view. 24-bit colour and texture mapping produce true-to-life colour models.

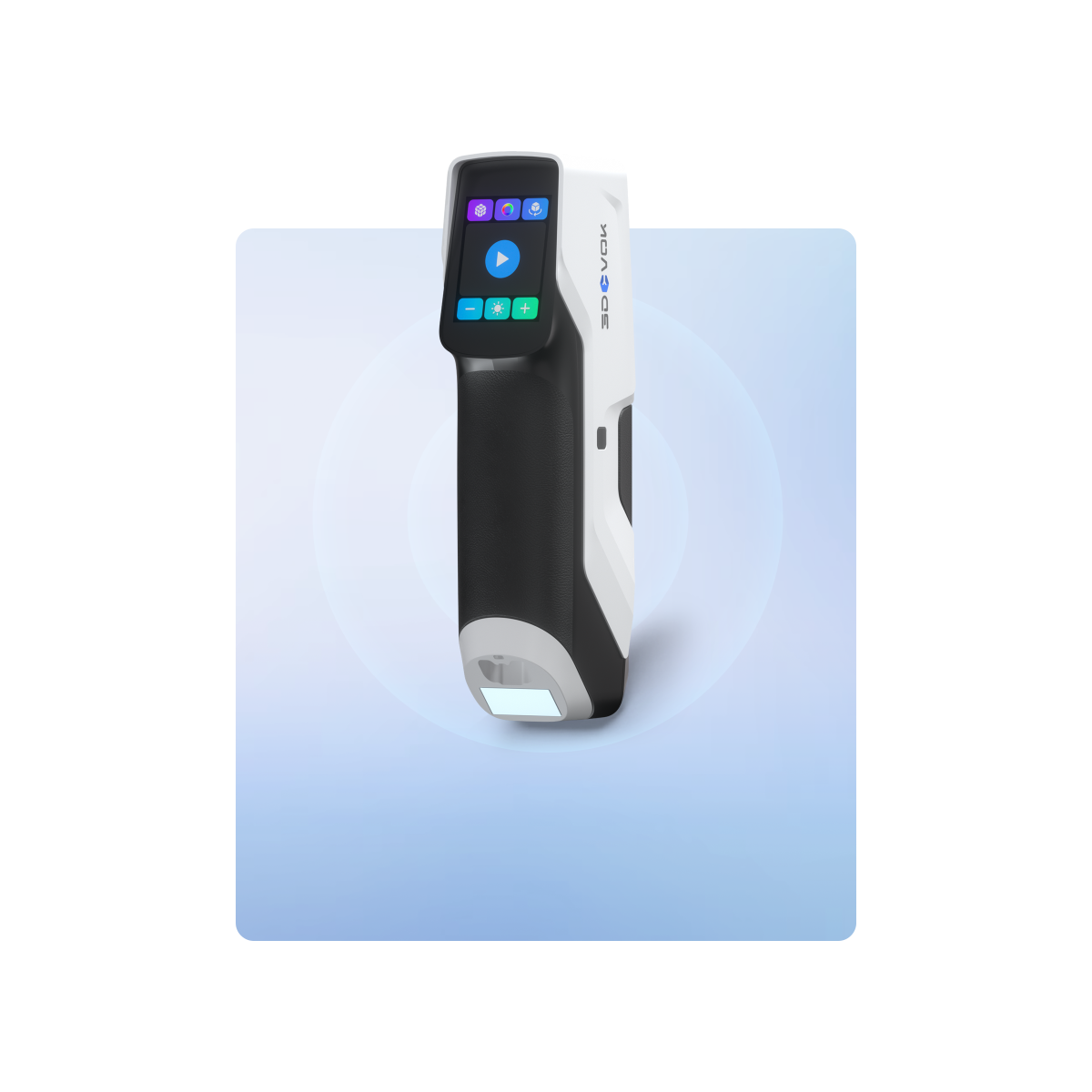

With the optional wireless handle it scans anywhere without cable constraints. It suits 3D printing, cultural heritage, reverse engineering, creative design, art, medical rehabilitation, and education and research.
| Feature | Value |
|---|---|
| Light sources | 22 infrared laser lines (invisible) · infrared VCSEL structured light (invisible) |
| Laser class | Class I (eye-safe) |
| Wireless scanning | Yes (with optional handle) |
| Accuracy | Up to 0.08 mm |
| Point distance (resolution) | Infrared laser 0.1 – 5 mm · speckle regular 0.2 – 5 mm, fine 0.1 – 5 mm |
| Alignment | Hybrid, marker, texture and geometric feature alignment |
| Colour / texture capture | Yes (24-bit colour + texture mapping) |
| Scanning distance | 150 – 1000 mm (laser) · 150 – 1500 mm (speckle) |
| Field of view | 140 × 140 mm – 490 × 490 mm (laser) · 50 × 75 mm – 1100 × 1000 mm (speckle) |
| Frame rate | Up to 70 FPS (marker) · up to 30 FPS (speckle) |
| Scanning speed | 2,450,000 points/s (laser) · 4,500,000 points/s (speckle) |
| Output formats | OBJ, STL, PLY, ASC, MK2, TXT, EPJ, APJ, SPJ, MAP, SK |
| Operating environment | 0 – 40 °C, 10 – 90% RH (non-condensing) |
| Interface | USB 3.0 |
| Dimensions / weight | 215 × 73 × 53 mm · 620 g |
| Power | DC 12 V, 5.0 A |
| Certifications | CE-EMC, FCC, RoHS, IEC 60825, IEC 62471, IEC 60529-IP50, WEEE, KC |
| Recommended PC | Win10/11 64-bit · i7-13650HX or higher · 32 GB RAM · NVIDIA RTX 3060 (6 GB) or higher |
